3878

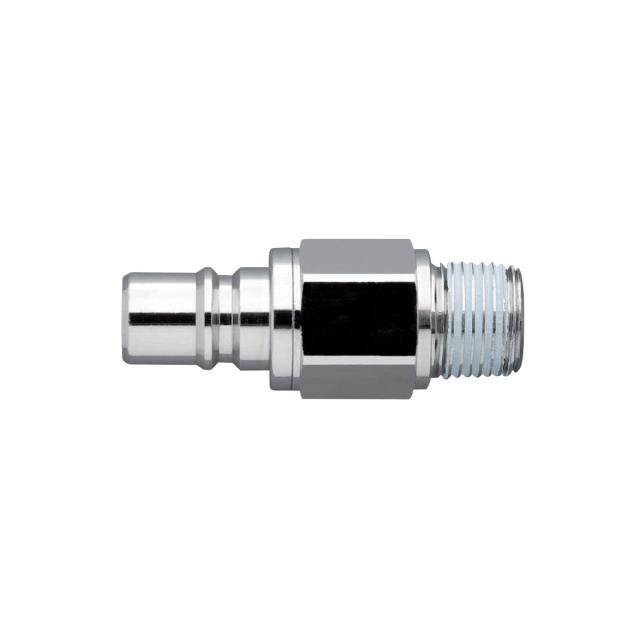

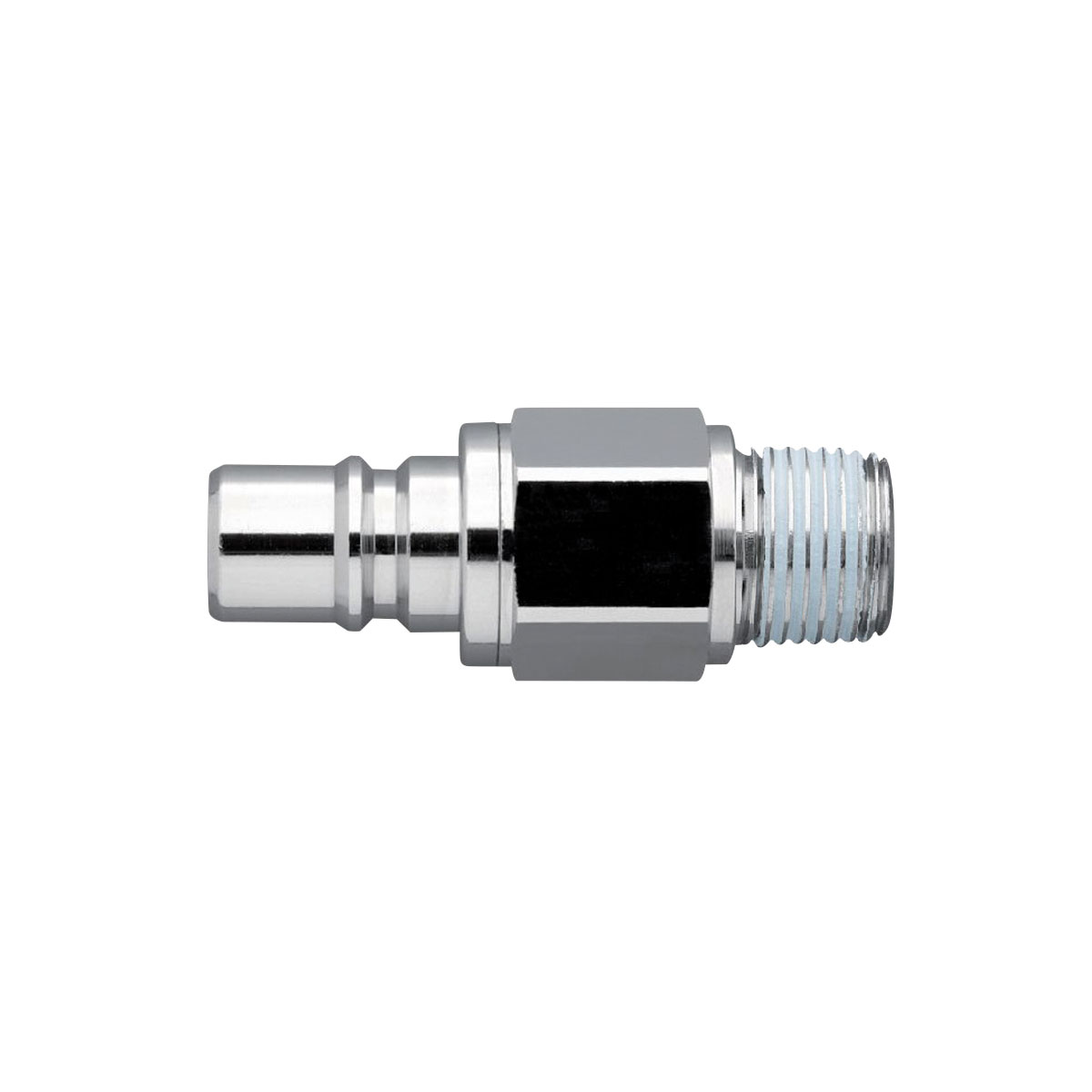

Ventilnippel mit konischem Gewinde
TECHNICAL DESCRIPTION
Coupling series especially developed for connecting coolant lines on injection moulds. Fully interchangeable with other brands with the same plug profiles. All dimensions and tolerances according to original specs.
WORKING PRESSURE
15 bar, maximum static working pressure with safety factor of 4 to 1
WORKING TEMPERATURE
Water -15°C up to +140°C
Downloads
| Name | Herunterladen | File type | |
|---|---|---|---|
| Datasheet-COUPLERS-French-Matic-Series.pdf | 400 KB |
